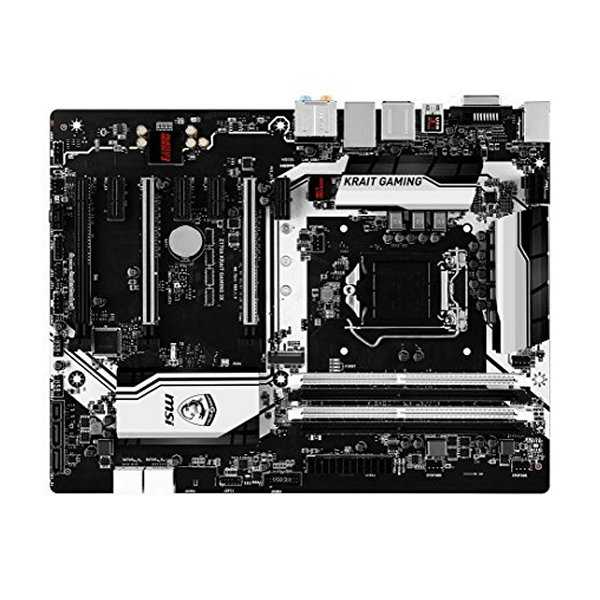

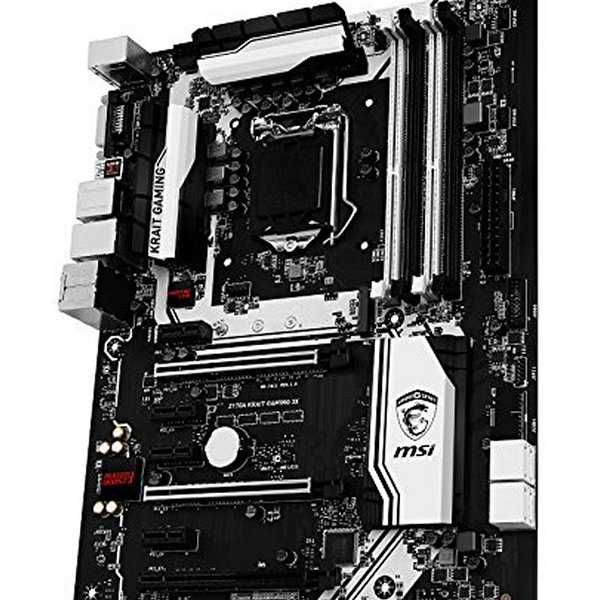

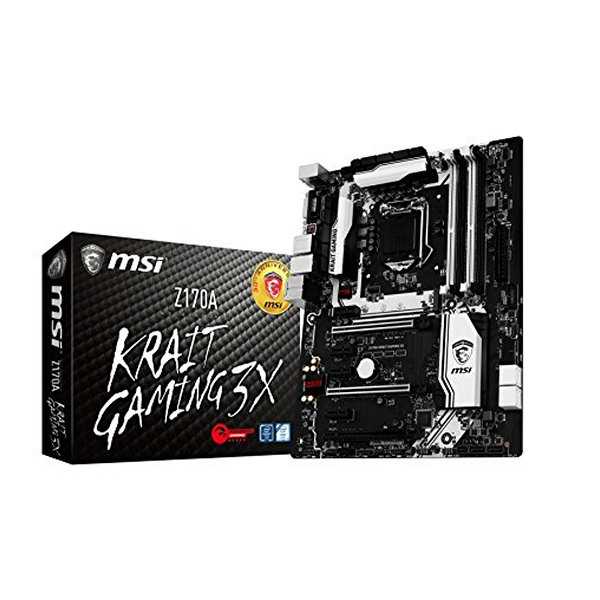

Marca | MSI |
Modelo | Z170A Krait Gaming 3X (911-7A11-005) |
Plataforma | - ATX (30.5 cm x 23.5 cm) |
Chipset | - Z170 Chipset |
CPU Soportados | - Soporta 6th Gen Intel® Core™ i3/i5/i7, Intel® Pentium® y Celeron® para Socket LGA1151 |
Memoria | - 4 x DDR4 slots de memoria, hasta 64GB - Soporta DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz - Dual channel memory architecture - Soporta ECC, un-buffered memory - ECC UDIMM memory (non-ECC mode) - Soporta Intel® Extreme Memory Profile (XMP) |
Slots Expansión | - 3 x PCIe 3.0 x16 slots (support x16/x0/x4 or x8/x8/x4 modes) - 4 x PCIe 3.0 x1 slots |
Gráficos | - 1 x HDMI™, 4096x2160@24Hz, 2560x1600@60Hz - 1 x DVI-D, 1920x1200@60Hz Soporte Multi-GPU - Soporta 3-Way AMD® CrossFire™ Technology - Soporta 2-Way NVIDIA® SLI™ Technology |

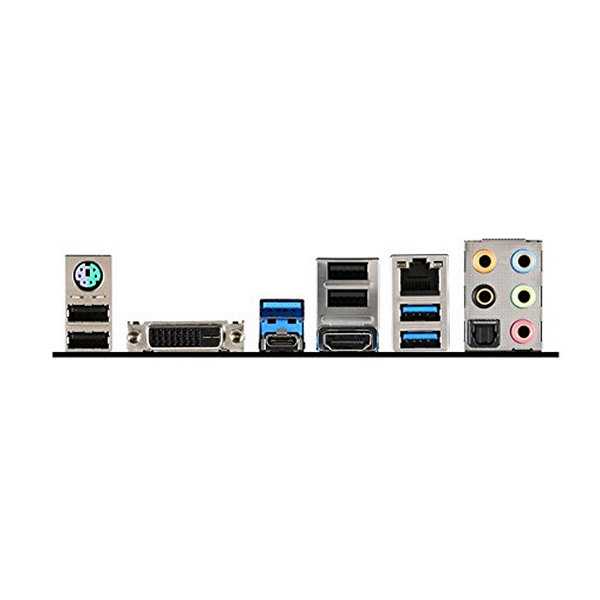

Puertos E/S, Conectores | Internos - 1 x 24-pin ATX main power - 1 x 8-pin ATX 12V power - 6 x SATA 6Gb/s - 1 x SATAe - 2 x USB 2.0 - 2 x USB 3.1 Gen1 - 2 x 4-pin CPU fan - 3 x 4-pin system fan - 1 x Front panel audio - 2 x Front panel - 1 x TPM module - 1 x Chassis Intrusion - 1 x Clear CMOS jumper - 1 x TBT Externos - 1 x PS/2 keyboard/ mouse combo - 4 x USB 2.0 - 1 x DVI-D - 1 x USB 3.1 Gen2 - 1 x USB 3.1 Gen2 Type-C - 1 x HDMI™ - 1 x LAN (RJ45) - 2 x USB 3.1 Gen1 - 1 x Optical S/PDIF OUT - 5 x OFC audio jacks |
Otras Características | Almacenamiento - 6 x SATA 6Gb/s - 1 x M.2 slot - Soporta PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards - Soporta PCIe 3.0 x4 NVMe Mini-SAS SSD con Turbo U.2 Host Card - 1 x SATAe port (PCIe 3.0 x2) - Soporta Intel® Smart Response Technology para procesadores Intel Core™ RAID - Soporta RAID 0, RAID1, RAID 5 y RAID 10 para dispositivos de almacenamiento SATA USB - 1 x USB 3.1 Gen2 - 1 x USB 3.1 Gen2 Type-C - 6 x USB 3.1 Gen1 - 8 x USB 2.0 Audio - Realtek® ALC1150 Codec - 7.1-Channel High Definition Audio - Soporta S/PDIF output LAN - 1 x Intel® I219-V Gigabit LAN controller Montaje - 6 x agujeros de montaje |
Fecha Revisión | 29-02-2016 por MSB |
