Marca | MSI |

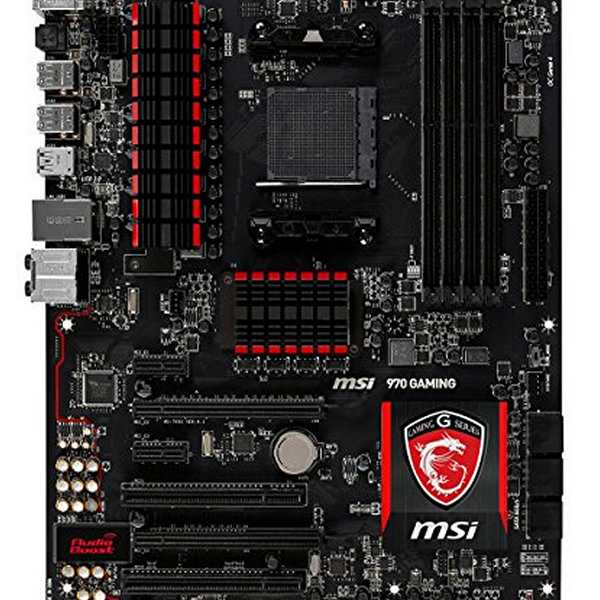

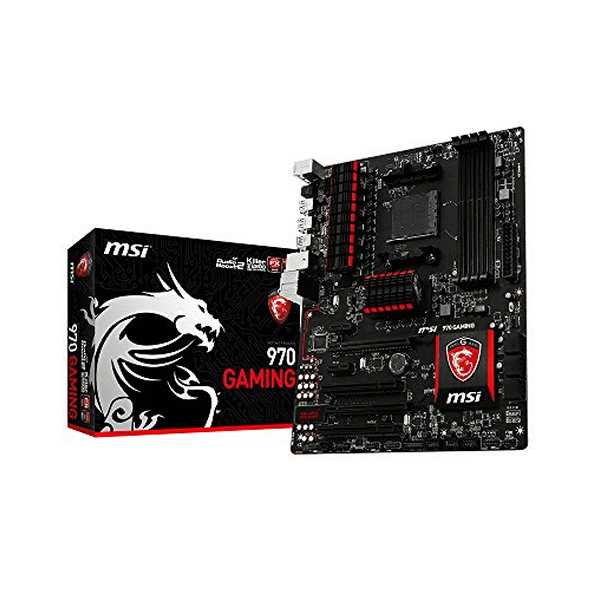

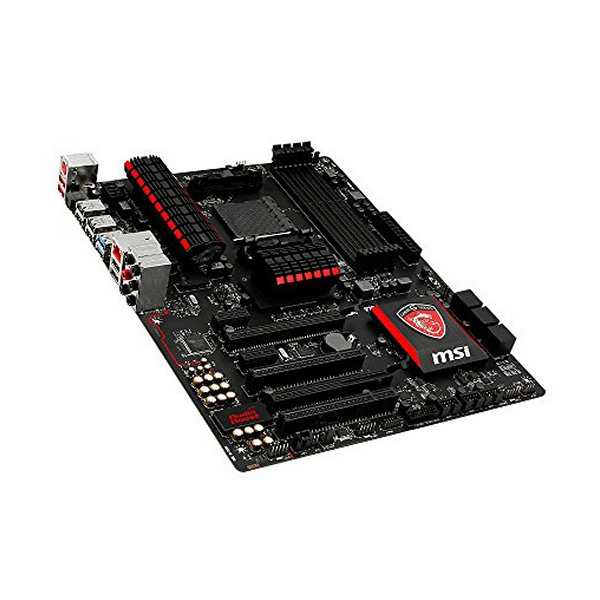

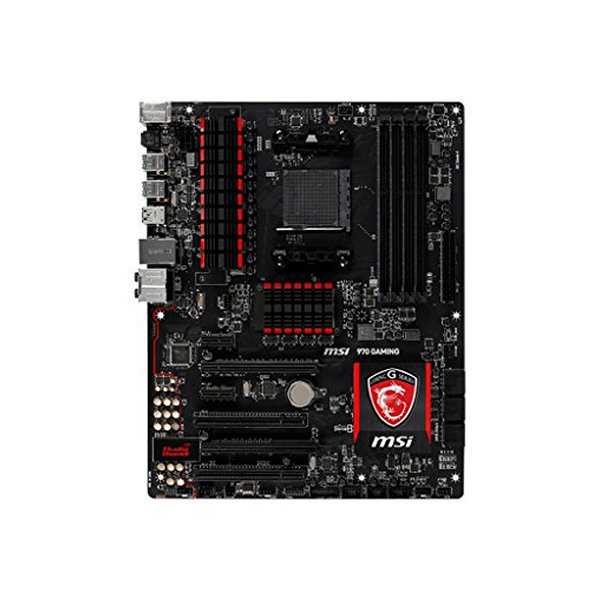

Modelo | 970 Gaming (911-7693-030) |
Plataforma | - Formato ATX Dimensiones: 30.5 cm x 24.4 cm |
Chipset | - AMD® 970+SB950 - Hyper Transport Bus HyperTransport 3.0 supporting speed up to 4.8GT/s |
CPU Soportados | - Soporta procesadores AMD®FXTM/ Phenom™ II/ Athlon™ II and Sempron™ para socket AM3/ AM3+ |
Memoria | - 4 x DDR3 memory slots hasta 32GB - Soporta DDR3 2133(OC)/ 1866/ 1600/ 1333/ 1066 MHz - Dual channel memory architecture. |
Slots Expansión | - 2 x PCIe 2.0 x16 slots - PCI_E2 Soporta up to PCIe 2.0 x16 speed - PCI_E4 Soporta up to PCIe 2.0 x8 speed - 2 x PCIe 2.0 x1 slots - 2 x PCI slots. |
Gráficos | - N/A |

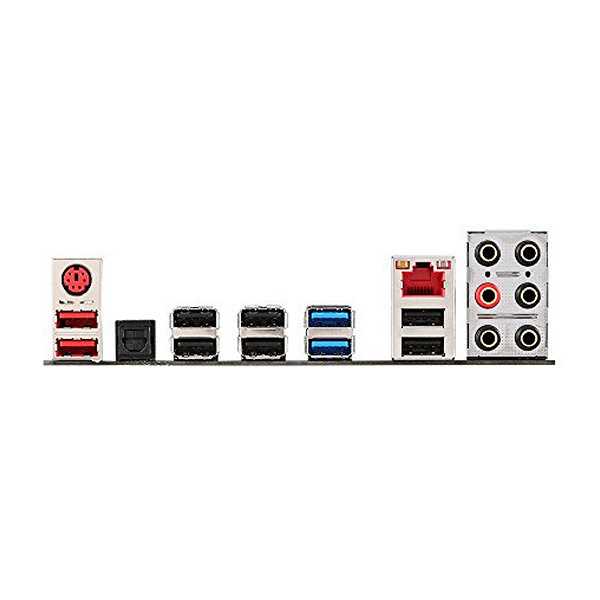

Puertos E/S, Conectores | Internos -1 x 24-pin ATX main power -1 x 8-pin ATX 12V power -6 x SATA 6Gb/s -3 x USB 2.0 -1 x USB 3.0 -1 x 4-pin CPU fan -2 x 4-pin system fan -2 x 3-pin system fan -1 x Front panel audio -2 x System panel -1 x Chassis Intrusion -1 x TPM module -1 x Serial port -1 x S/PDIF-Out -1 x Clear CMOS jumper -1 x Slow mode booting switch En panel trasero - 1 x PS/2 keyboard/ mouse combo port - 8 x USB 2.0 ports - 2 x USB 3.0 ports - 1 x Optical S/PDIF-Out connector - 1 x LAN (RJ45) port - 6 x OFC audio jacks |
Otras Características | Multi-GPU - Soporta tecnología 2-Way AMD® CrossFire™ On-Board SATA - AMD SB950 Chipset - 6 x SATA 6Gb/s ports - Soporta RAID 0, RAID1, RAID5 and RAID 10 USB - AMD® SB950 Chipset - 14x USB 2.0 ports (8 ports on the back panel, 6 ports available through the internal USB 2.0 connectors) - VIA VL806 Chipset - 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB 3.0 connector)* Audio - Realtek® ALC1150 Codec - 7.1-Channel High Definition Audio - Soporta S/PDIF output LAN - Killer E2205 Gigabit LAN controller* - 1 x LAN port on the backpanel. |
Fecha Revisión | 10-07-2014 por FE4 |
